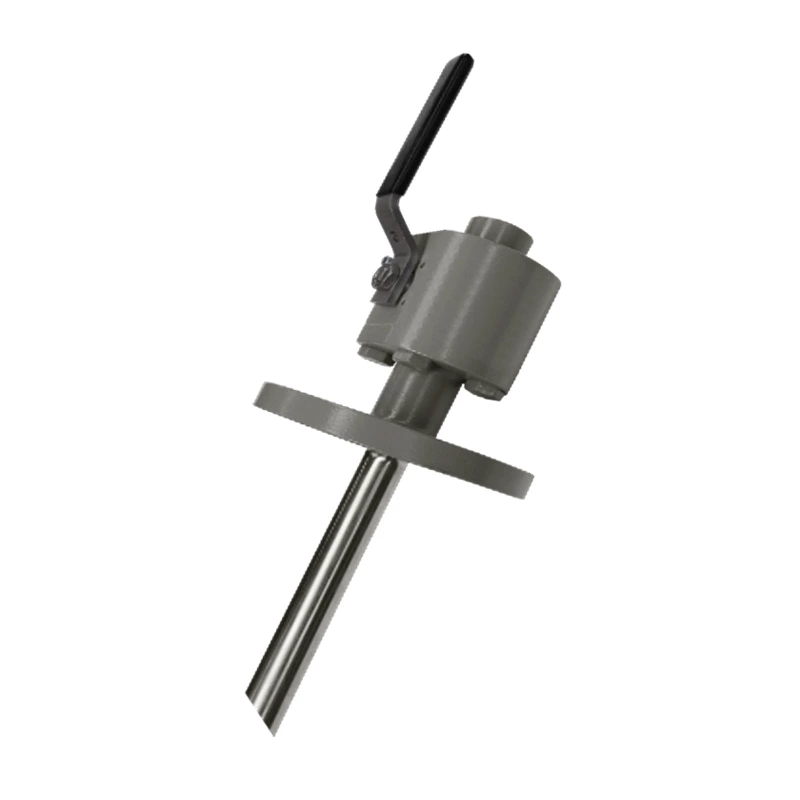

SBB Valve

Feature

· Single block & bleed valve, floating type, Integral body single ball;

· Solid ball;

· Side enty, split body；

· Full bore or reduced bore；

· Anti-static, anti blow-out stem, fire safe;

· Soft seat or metal to metal

· Dynamic and static sealing in the form of Lip seal or Oring

· Locking device.

Specification

· Temperature-pressure rating: ASME B16.34;

· Design & Manufacture：API6D, ISO17292, API608, BS5351;

· Face to Face: Manufacturer's standard, B16.10

· Flanged conection: B16.5

· NPT conection: B1.20.1

· Inspection & Test: API6D, API598

· Leakage: ISO5208

· Fire safe: API607/API6FA.

· Fugitive Emission: ISO15848
