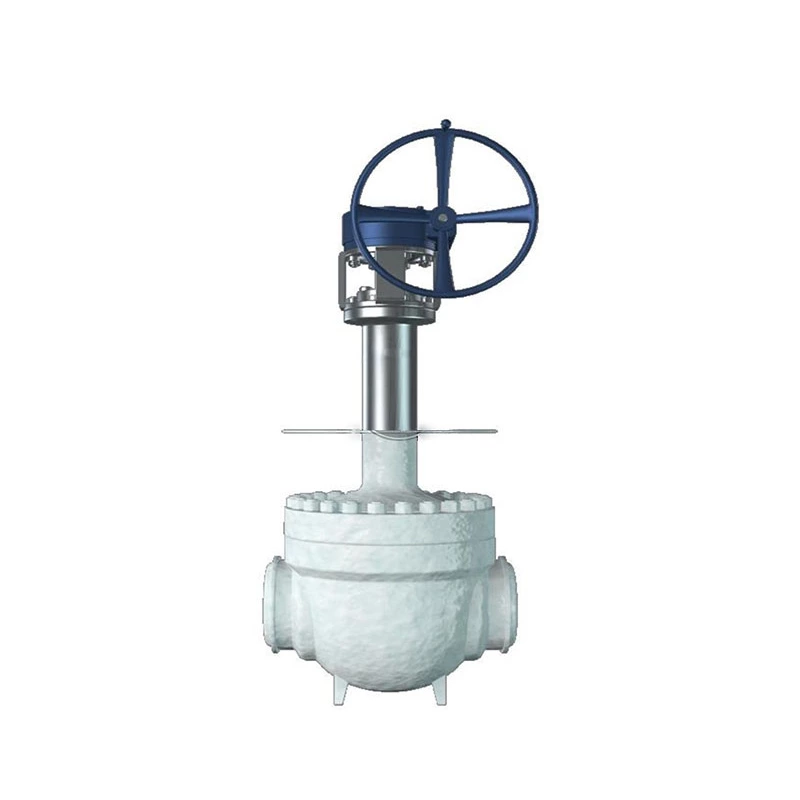

Cryogenic Service Ball Valve

Feature

· Floating type, or Trunnion mounted;

· Side entry split body, or Top entry unibody

· Extended bonnet, Solid ball;

· Full bore or reduced bore；

· Anti-static, anti blow-out stem, fire safe;

· Soft seat or metal to metal

· Dynamic and static sealing in the form of Lip seal;

· ISO5211 mounting flange;

· Locking device.

Specification

· Temperature-pressure rating: ASME B16.34;

· Design & Manufacture：BS6364

· Face to Face: ASME B16.10, API6D;

· Flanged conection: ASME B16.5

· BW conection: ASME B16.25

· Inspection & Test: BS6364

· Fire safe: API607/API6FA.

· Fugitive Emission: ISO15848

· Suor service: NACE MR0175/NACE MR0103

3、Production range

· Class: 150-2500lb

· Size: 1/2"-24"

· End: RF, RTJ, BW, HUB

· Materials: CS, LTCS, SS, DSS, SDSS, Special Materials

· Operation: Lever, Gear, Pneumatic, Electric actuator, Gas over oil
