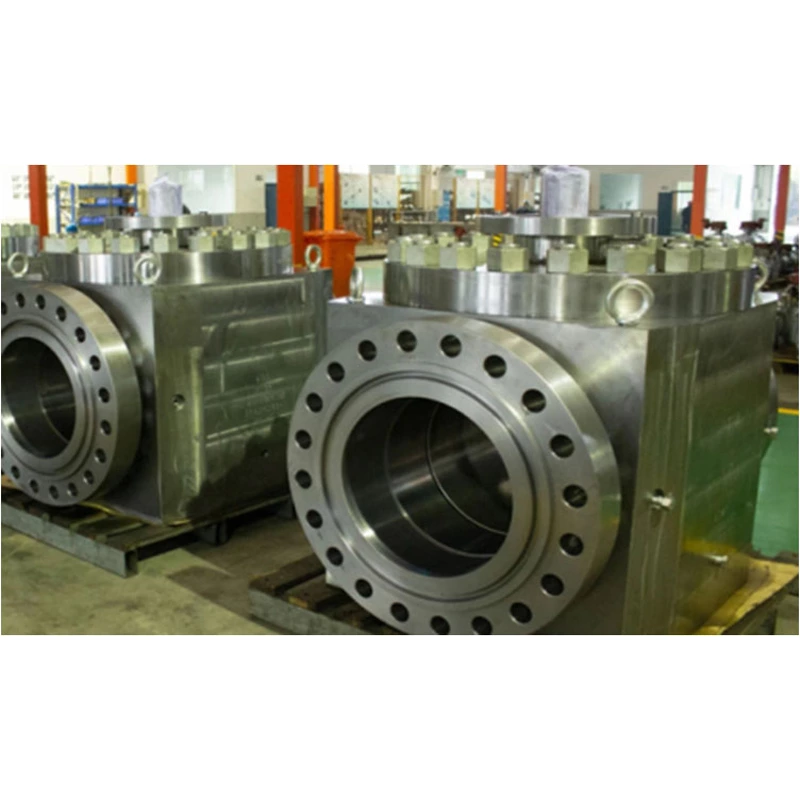

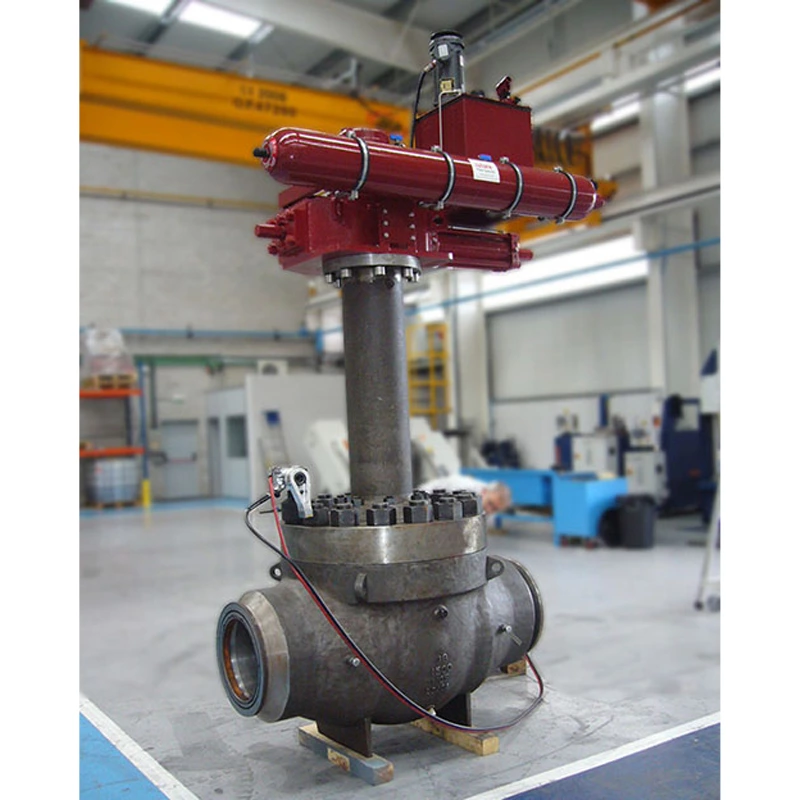

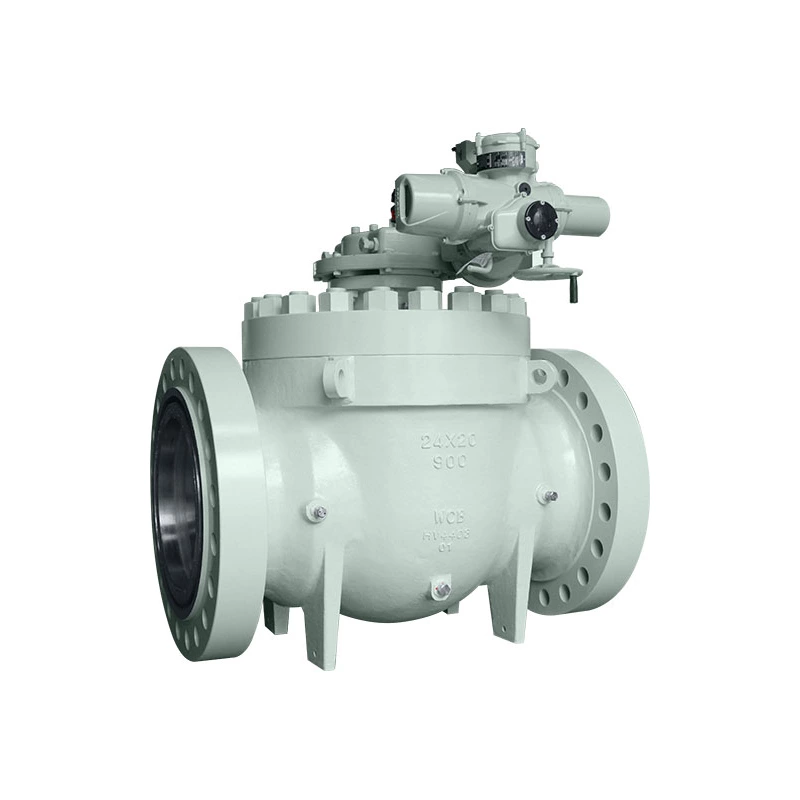

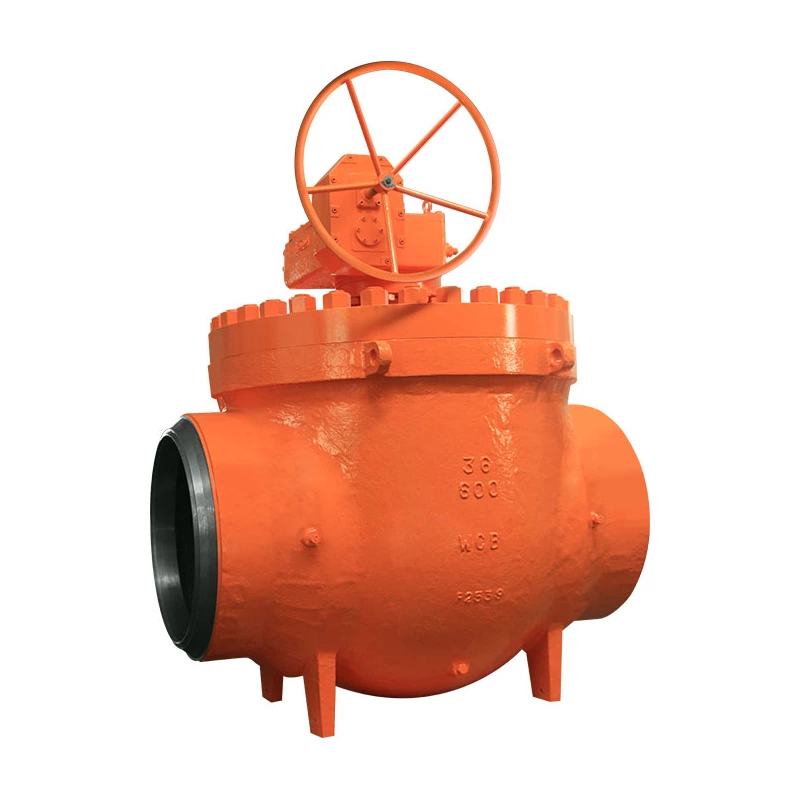

Top Entry Trunnion Ball Valve

Feature

· Trunnion mounted ball valve, Top entry, unibody.

· Solid ball;

· Full bore or reduced bore；

· Anti-static, anti blow-out stem, fire safe;

· Emergency sealant injection;

· DBB(SPExSPE) function, DIB-1(DPExDPE), DIB-2(DPExSPE);

· Soft seat or metal to metal

· Dynamic and static sealing in the form of Lip seal or Oring

· ISO5211 mounting flange;

· Locking device.

Specification

· Temperature-pressure rating: ASME B16.34;

· Design & Manufacture：API6D, ISO17292, API608, BS5351;

· Face to Face:   Manufacturer's standard;

· Flanged conection: B16.5, ASME B16.47

· BW conection: ASME B16.25

· Inspection & Test: API6D, API598

· Leakage: ISO5208

· Fire safe: API607/API6FA.

· Fugitive Emission: ISO15848

· Suor service: NACE MR0175/NACE MR0103
